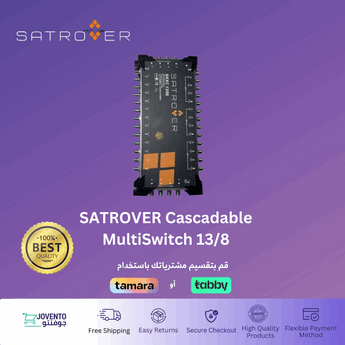

The SATROVER Cascadable MultiSwitch 13/8 is a versatile and high-quality solution for satellite signal distribution, designed for both residential and commercial applications. With 13 input ports and 8 output ports, this multiswitch offers exceptional flexibility in distributing satellite signals to multiple viewing locations. It supports connections for up to two different satellites, allowing access to a wide range of channels and services.
This cascadable multiswitch is perfect for installations that require simultaneous satellite signal distribution to eight different points or viewing locations. Its cascading capability allows for easy expansion of your satellite distribution network, making it suitable for both small and large-scale installations. The multiswitch ensures a reliable and interference-free signal, providing an excellent viewing experience for end-users.
With the SATROVER Cascadable MultiSwitch 13/8, you can efficiently manage satellite signal distribution in various settings, ensuring that viewers have access to their favorite channels and programming with ease and convenience.
- SATROVER MULTISWITCH CASCADABLE 13 IN AND 8 OUT IF CONNECTION
- ( SUPPORT 2 SATELLITE AND 8 POINTS )
- CASCADABLE MODEL SRXC908 With Power Supply
Item Specification | TYPICAL VALUE | ||
Frequency response | 47~2150MHz | ||
Inputs | 8-16 SAT - 8 SAT+1 Terr | ||
Gain | Terr 47~870Mhz | ||
SAT 950~2150Mhz | |||
Isolation | |||
Terr to SAT | |||
SAT to Terr | |||
Cross polar. H/V | 35 dB | ||
OUTOUT | 47~870Mhz | 38 dB | |
950~2150Mhz | 40 dB | ||
Cascade Loss | Terr 47~870Mhz | ||
SAT 950~2150Mhz | |||
Max. Output level |
SAT (IMA335dB). EN50083-3 | 100 dBμV | |
Terr (IMA360dB). EN50083-5 | 90 dBμV | ||
LNB Power Supply | 18VDC Max. 2000~3000 mA |
||
Switching commands | 13V,13V/22kHZ 18V. 18V/22kHz DisEqC2.1, Tone Burst |
||
Switching voltage | <L4V selects vertical >18V selects horizontal |
